Product Details:
|
|
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Gzcosmos |
| Certification: | CU,ISO |
| Model Number: | TOP-TP70-P5 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| One Carton Box: | 32pcs | Power Voltage: | 12v |
|---|---|---|---|
| Operation Current: | 2A,24W | Motor Lock: | 2.2A,26.4W |
| Weight: | 1Kg | Bill Box Capacity: | Approx 500 Bills |
| Bill Insertion: | Four Way Acceptable | Interface: | Pulse / R $ 232 Or Pulse / Cctalk Or Pulse / ID003 |
| High Light: | 12v igt slot machine bill acceptor,Arcade igt slot machine bill acceptor,TOP-TP70-P5 bill validator slot machine |
||
Product Description

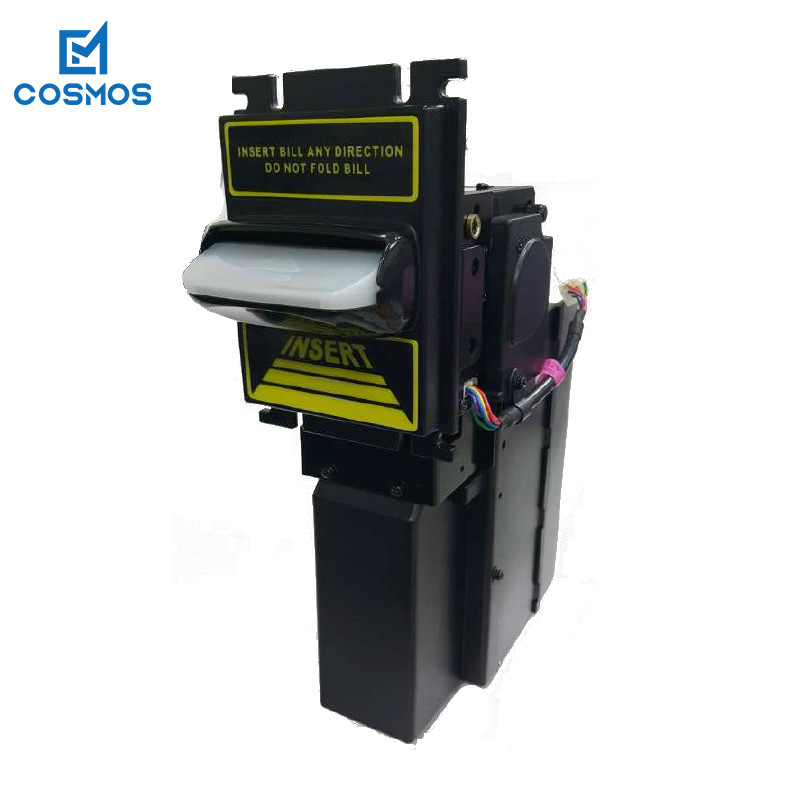

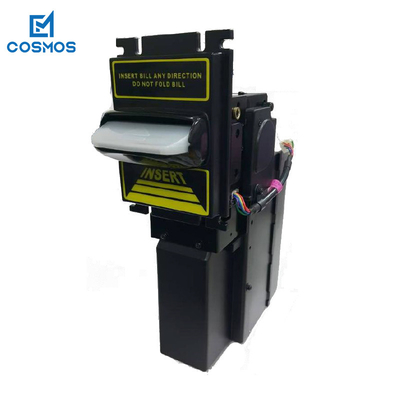

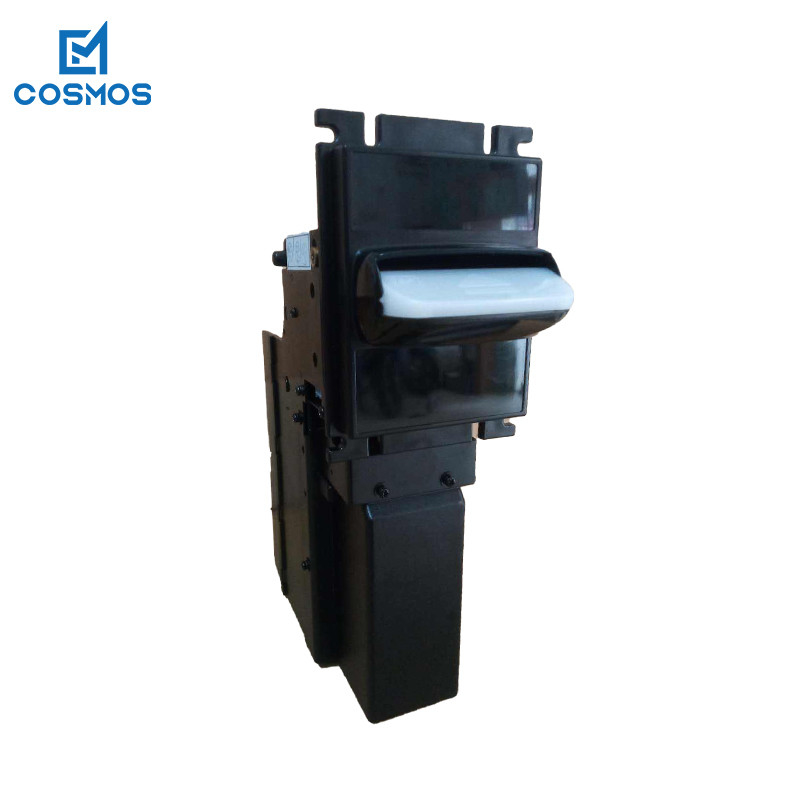

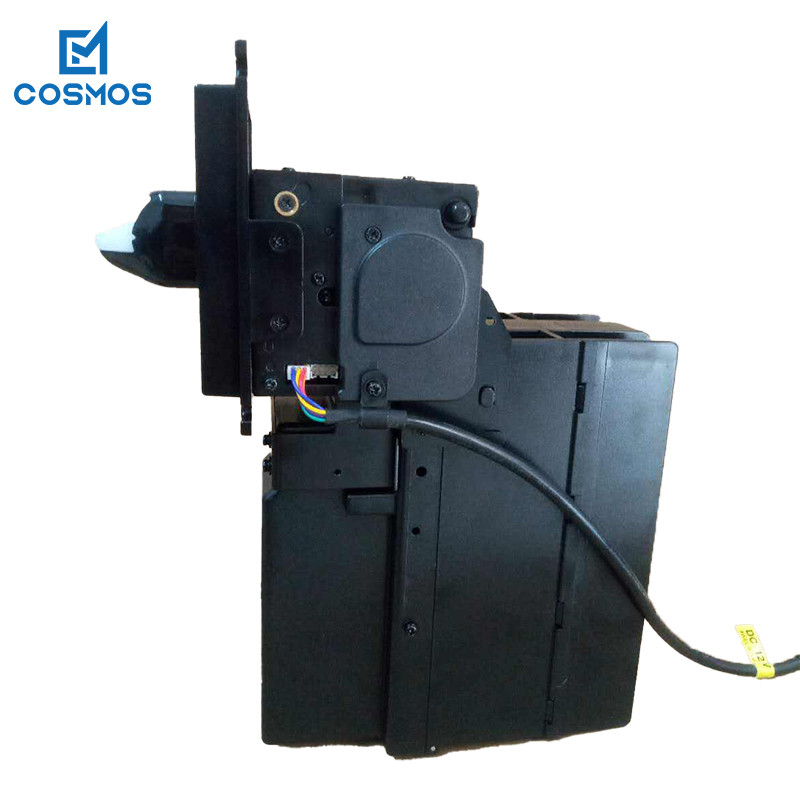

Bill Acceptor Arcade Game Machine Online Casino Payment System
Made in China, including cash box, can store 500 bills
Product size : TP70-P5 series of Bill Acceptor Units : mm [ inch ]
Electricale:
Power Source : 12VDG-5 %
Standby : 350MA / 4 . 2W
Motor Lock : 2A / 24W
Environment:
Operation Temperature : 0°C-60°C
Storage Temperature : -10°C-80°C
Humidity : 20 % -70 % 6RH ( no condensation )
Specification:
| Weight | Approx 1 . 55kg ( With Cash Box) |
| Outline Dimension | w82 . 90 XH286 14 x169 25mm |
| Brand Name | top |
| Bezel Options | 62mm-70mm |
| Model Number | top 70 p5 |
| Weight | 2.5KG |
| Power Source | 12V DC ± 10% |
| Interface | Pulse ,TOP Protocol |
| Acceptance Rate | 96% or greater |
| Bill Insertion | Four way acceptable |
Foreign objects on the LED or sensor may cause bill jammingand decrease acceptance rate. To make sure the bill acceptor alwaysworks smoothly, please clean the internal parts regularly
To clean the internal parts
1. Turn Bill Acceptor off
2. Open LED Assembly by pushing buttons on both sides.
3. Use a soft, dry cloth or towel to clean the bill path and sensors
For use with:
A variety of game boards for you to choose from:
Accept Custom Fishing Games
For the time being,IGS Ocean King series are hot sale in USA.You can add your ideas etc..Use features of Tiger strike,Phoenix realm,Lion strike,Leopard Strike,King of Tiger,Lion strike plus,Monster strike and etc.
Factory:
Package:
FAQ
Q1.Can you customize games for customers?
Yes, we have our own professional game development team, which can customize the machine, game board and software
Q2. How long is your delivery time?
After receiving the payment, online game will take 1 day, and machine will take 7-10 days (except for the customized type, and it depends on the quantity).
Q3. Warranty?
We provide 6-12 months warranty (except man-made damage) and lifetime technical support.
Q4. What is the profit rate in the game?
5%~70%, which can be adjusted according to customer requirements.
Q5. How is your after-sales service?
We provide 24*7 online service.
Q6: Do you provide samples? Is it free or extra?
A: Yes, for online games, we can provide test accounts and passwords for free.
Q7. Delivery time?
Online games do not need to be shipped. We will provide information within a day.
Game boards will be shipped by air, which will take 7 days, and game machine will be shipped by sea, which will take about 30 days, depending on the country.
