Product Details:
|
|
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Gzcosmos |
| Certification: | RoHS, CCC, CE, FCC |
| Model Number: | 23.6H |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Power Consumption: | 42W | Total Thickness: | 3mm |
|---|---|---|---|
| Power Input: | AC110V-220V | Color: | Multi |
| Series: | For Gaming | Aspect Ratio: | 16:9 |
| Products Status: | New | Type: | Intellitouch |
| Resolution: | 1920x 1080 (FHD) | Outline Dimension: | 649mm*388mm*61mm |
| High Light: | DVI Multi Touch Screen Monitor,USB Multi Touch Screen Monitor,Casino Machine Multi Touch Screen Monitor |
||
Product Description

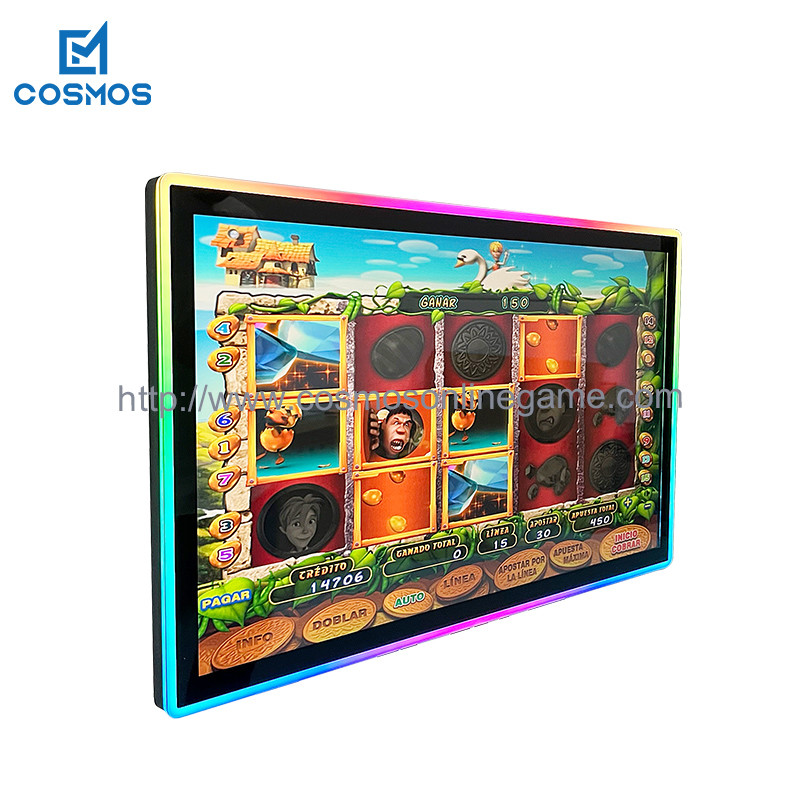

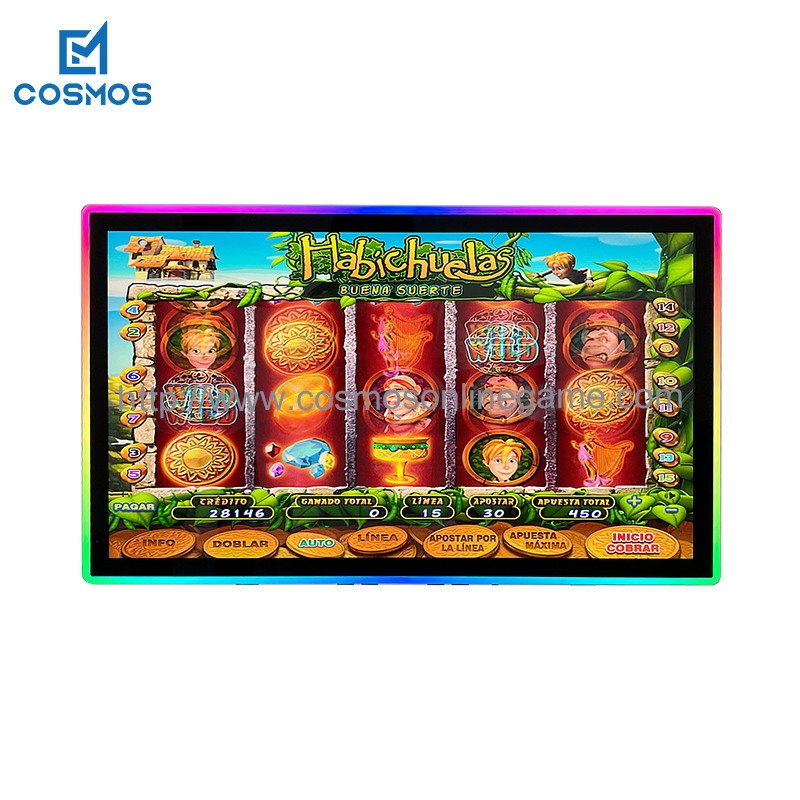

23.6/27 Inch Monitor USB DVI Multi Touch Screen Monitor For Casino Machine Slot
Design Description
1. Aluminum alloy frame, surface brushed and anodized, iron shell back cover, active heat dissipation
2. Using high-transparent physical tempered anti-riot glass, high-end silk screen materials; enhance visual effects
3. High-speed 10-point touch writing experience, better smoothness, faster writing touch speed
4. Support Android, Windows and other multi-platform system applications
5. Using LED lamp beads, the backlight is more energy efficient and durable

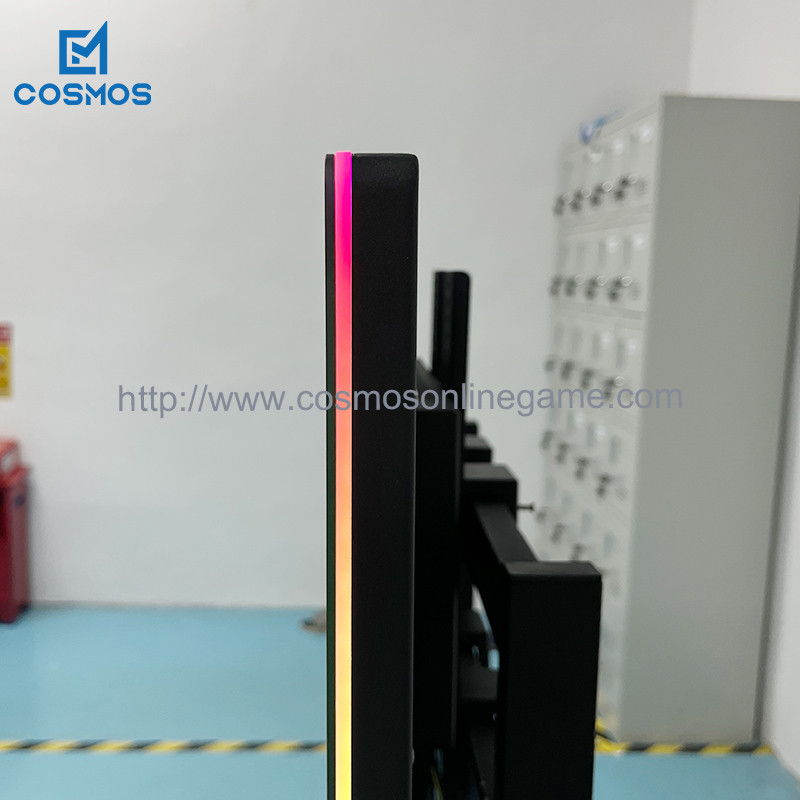

6. Ultra-thin body, the thinnest part is only 22mm
7. The display interface can be flexibly customized, the default is VGA (HDMI optional).
Features
1. 27" in FHD (1920 x 1080)
2. Touch monitor
3. 10‐touch PCAP behind 3mm tempered glass
4. Totally unique industrial design

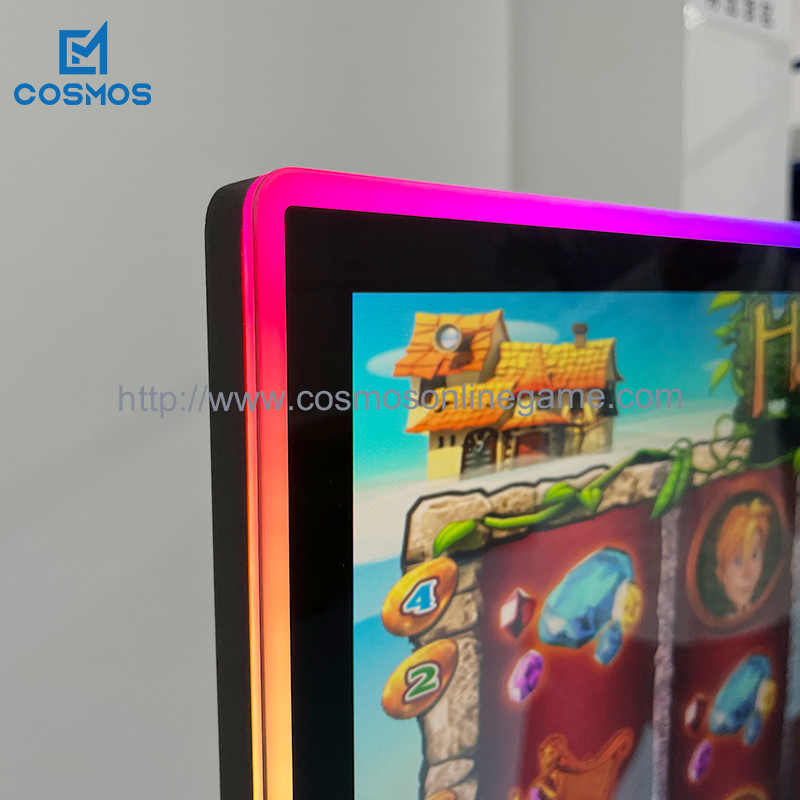

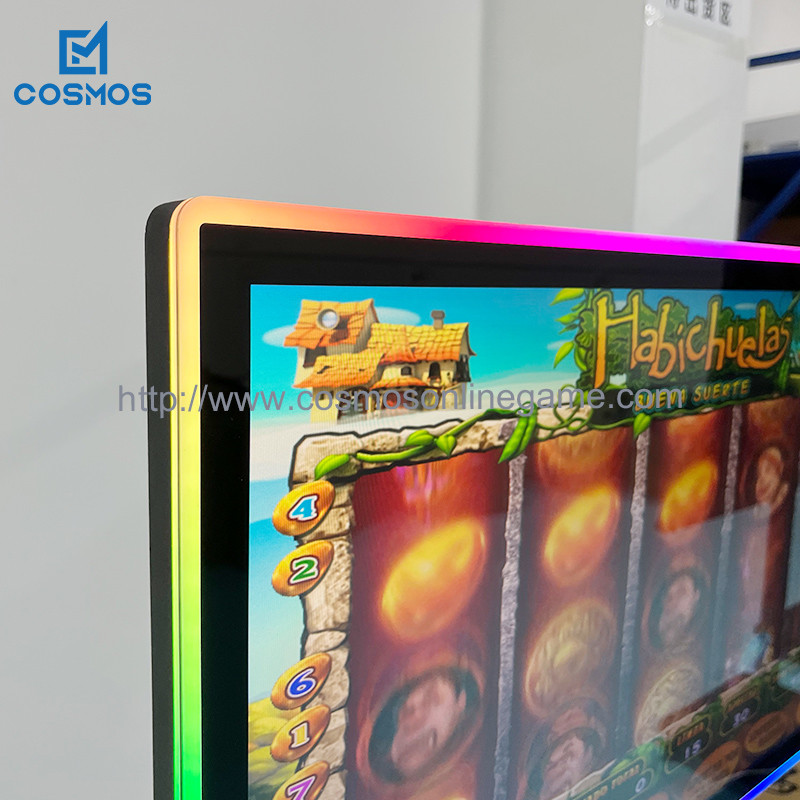

5. LED light strip surround
6. Flexible signal interface: VGA, HDMI & DP
7. WVA 178˚x 178˚ for landscape or portrait usage
8. Customization acceptable
9. Enhanced solution for casino slot machines, gaming, signage,
kiosksand other public information terminals
| Product:27“ FHD , touch monitor ( LED light strip surround) | |
| Display | |
| Pixel Pitch | 0.3114x 0.3114 |
| Resolution | 1920x 1080 (FHD) |
| Backlight | WLED |
| Ratio | 16:09 |
| Viewing Angl | 89°/89°(Left / Right) , 89°/89°(Vertical / Horizontal) |
| Color Depth | 16.7M (6-bit + Hi- FRC) |
| Contrast Ratio | Typ.1000:1 |
| Brightness | 300 (cd/m2) |
| Refresh rate | 60HZ |
| Response Time | 7 [msec] |
| Backlight Life (hrs) | 30,000 hrs |
| Touch Panel | |
| Touchscreen Type | Projected Capacitive Technology |
| Total Thickness | 3mm |
| Hardness | 7H |
| Interface Type | USB interface, Type B |
| Touch Points | 10 points |
| Touch Operation | Finger or touch pen |
| Compatible O/S | WinXP, Windows 10, Android, Linux, Ubuntu&3M |
| System | |
| I/O | VGA x 1, HDMI x 1, USB x 1,ACx 1,LED Lighting Control Portx2&RS232,DP |
| OSD | OFF/ON ,LED ,AdjustCancel,Plus/Up,Less/Down,Menu/Ok |
| Power Consumption | 42W |
| Outline Dimension | 649mm*388mm*61mm |
| Package Dimension | 665mm*410*140mm |
| Power Input | AC110V-220V |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity | 10 ~ 90% @ 40 °C, non-condensing |
| Net weight | 9.3kg |
| Gross weight | 10.45kg |
If You Buy Machines Or Kit From Us, WE will Show You Video How To Connect Harness From Parts. If You Want To Use Key In Credits Key Out Credits , It Works Too . Machine Work With Bill Acceptor With Or Without Bill Acceptor. Also ICT Printer Which Can Print Tickets Out From Printers Too If Customer Needs. If You Would Like To Know More Of This. You Can Send Us Inquiry.
RFQ
Q1.Can you customize games for customers?
Yes, we have our own professional game development team, which can customize the machine, game board and software
Q2. How long is your delivery time?
After receiving the payment, online game will take 1 day, and machine will take 7-10 days (except for the customized type, and it depends on the quantity).
Q3. Warranty?
We provide 6-12 months warranty (except man-made damage) and lifetime technical support.
Q4. What is the profit rate in the game?
5%~70%, which can be adjusted according to customer requirements.
Q5. How is your after-sales service?
We provide 24*7 online service.
Q6: Do you provide samples? Is it free or extra?
A: Yes, for online games, we can provide test accounts and passwords for free.
Q7. Delivery time?
Online games do not need to be shipped. We will provide information within a day.
Game boards will be shipped by air, which will take 7 days, and game machine will be shipped by sea, which will take about 30 days, depending on the country.
